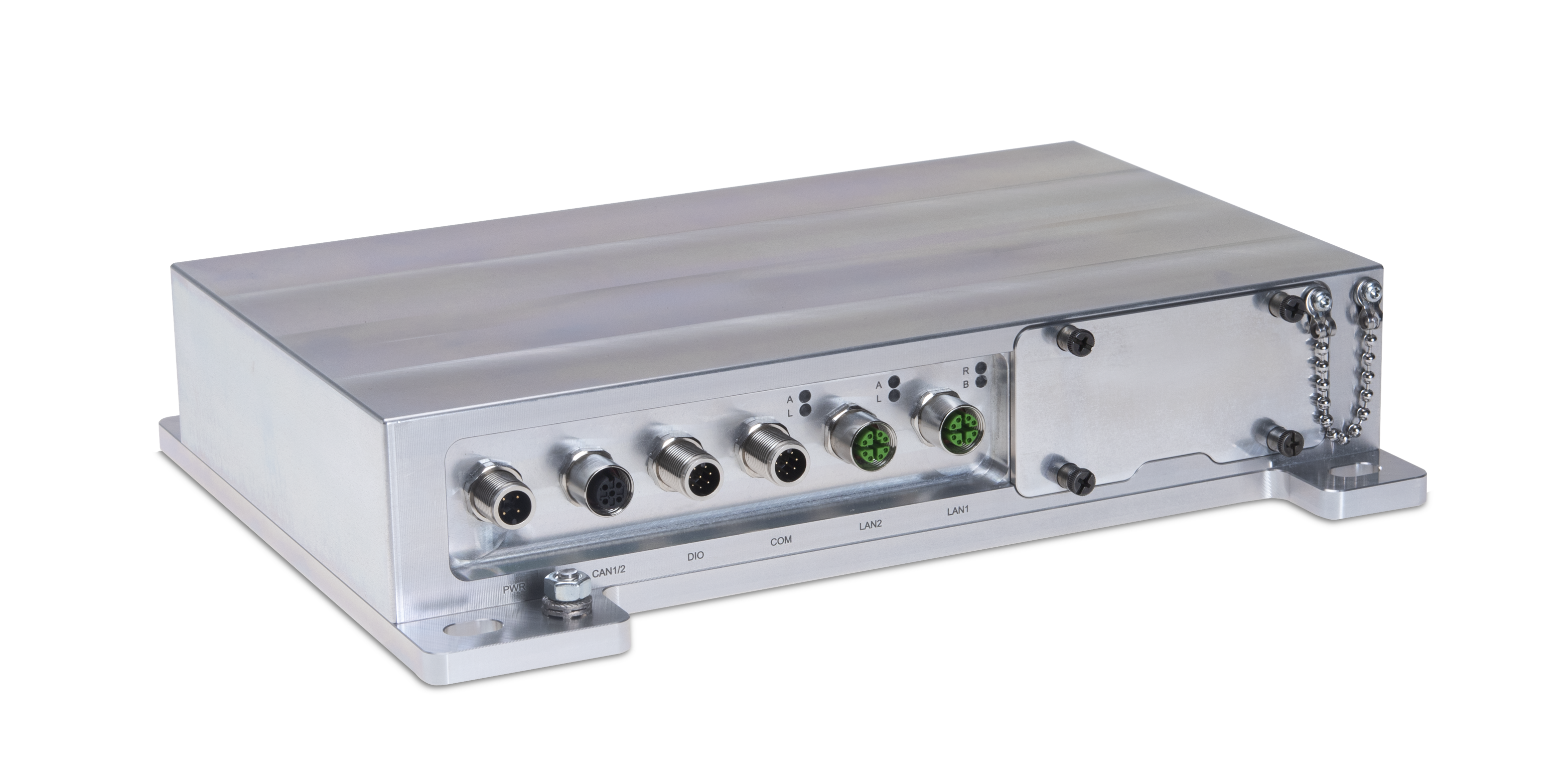

The Rugged Computer RPC 82 is ideal for use in harsh environments. The embedded PC can withstand shock, vibration and heat as well as dust, moisture and splashing water. As a result, the rugged computer is used worldwide in agricultural equipment, construction machinery, the energy industry, smart cities and railways.

The clever mechanical design includes an aluminium housing with a Goretex module. All components, from the Elkhart-Lake processors to the M12 connectors (LAN) and flash memory, are designed for high MBTF values (mean time between failure) in harsh environments. This makes the box PC one of the most robust embedded systems on the market.

Customize product

All products

Compare Products

RPC/RSL82H15-A154
Processor
Intel® Atom Elkhart Lake x6425RE - 1.9GHz
Memory / RAM
16GB RAM
Storage
internal eMMC 32GB
1x micro SD Card socket
1x CFast socket
Display out
1x Displayport 1.4a (behind front cover)
USB
2x USB 3.1 Type-A (behind front cover)
Networking
2x 10/100/1000BASE-T
CAN
2x CAN2.0A / CAN2.0B with CAN-FD support
Serial
1x RS232
Digital I/O
4 Inputs, 4 Outputs
Wireless
4G LTE w/GNSS
Wi-Fi 6 ax/ac/a/b/g/n/ & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x Mini PCIe socket
Power Input
8.4 - 45V DC
Protection class
IP67
IP69
Dimensions
w276 x h58 x d210mm
Weight
3.5kg
Op. Temp. range
-25°C to +65°C
