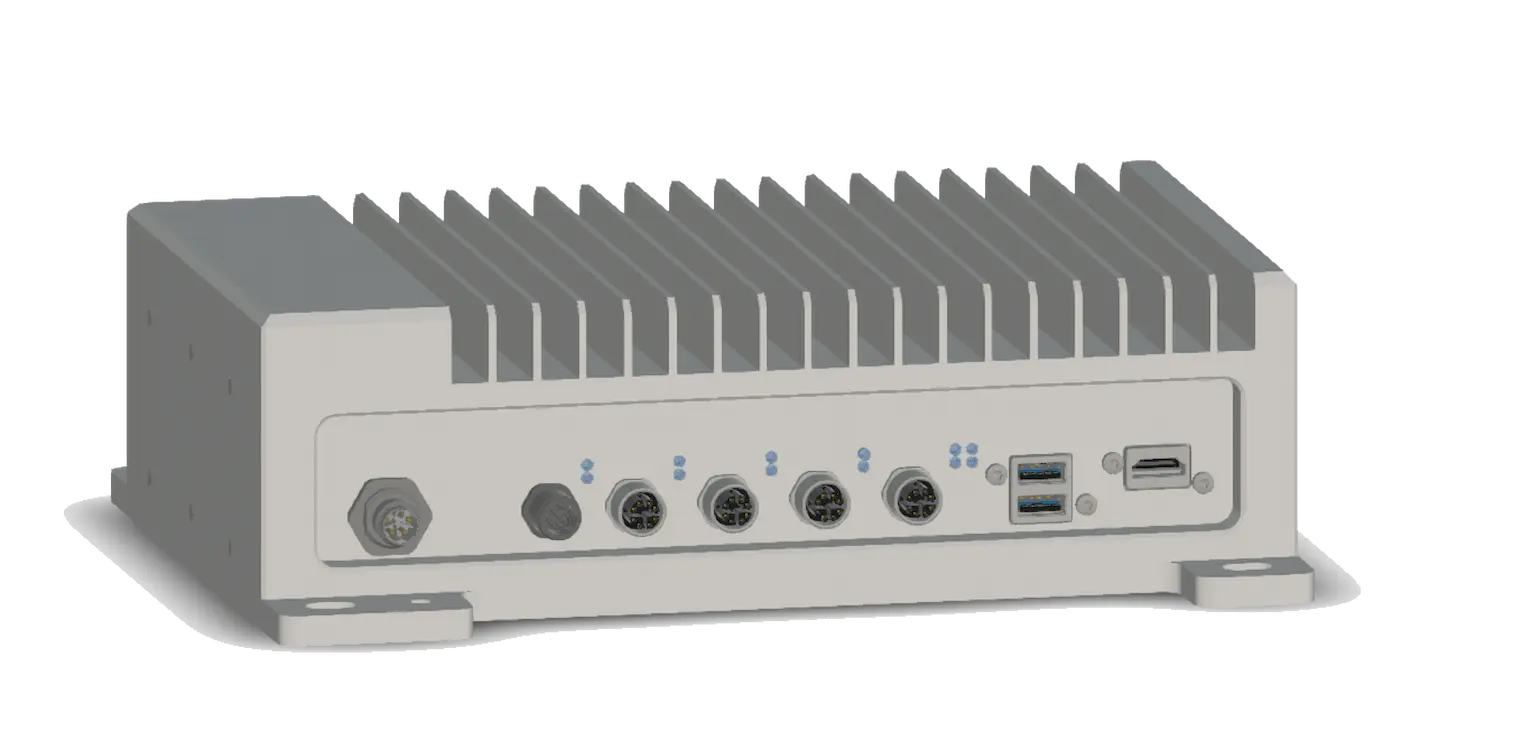

The Rugged Computer RSL 10 is based on the 13th generation of Intel Core i processors (Raptor Lake). The fanless embedded system is ideal for use in harsh environments. The RSL 10 can withstand shock, vibration and heat, as well as dust, moisture and splashing water. As a result, embedded computers are being used worldwide in agricultural technology, construction machinery, the energy industry, smart cities and railway technology.

The clever mechanical design includes an aluminium housing with a Goretex module. All components, from the Raptor Lake processor to the M12 connectors (LAN) and flash memory, are designed for high MBTF (Mean Time Between Failure) in harsh environments. This makes this Box PC one of the most robust and durable embedded systems on the market.

Customize product

All products

Downloads

Documents

Datasheet

Product manual

CE declaration ofconformity

Software

Drawings + 3D files

Mechanical Drawing(PDF)

3D file (STP)

Accessories

Most popular accessories for this product

No items found.

All Accessories

Compare Products

RPC/RMLA4NX16-A202S-02
RPC/RMLA4NX16-B202S-02
RPC/RMLA4NX16-N202S-02
RPC/RMLA4NX16-M202S-02
Jetson Module
Orin NX
Orin NX
Orin NX
Orin NX
Memory / RAM
16GB RAM
16GB RAM
16GB RAM
16GB RAM
Storage
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
Display out
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
USB
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
Networking
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T

2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T

2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
GMSL Camera Input
-
-
8x GMLS2 inputs
8x GMLS2 inputs
CAN
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
Serial
1x RS232
1x RS232
1x RS232
1x RS232
Digital I/O
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
Wireless
-
4G LTE w/GNSS
Wi-Fi ax/ac/a/b/g/n/ & Bluetooth
-
4G LTE w/GNSS
Wi-Fi ax/ac/a/b/g/n/ & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for NVMe M.2 SSD
1x mPCIe
1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E)  > used for Wi-Fi
1x M.2 2280 (Key M) > used for NVMe M.2 SSD
1x mPCIe
1x microSD
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for NVMe M.2 SSD

1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E)  > used for Wi-Fi
1x M.2 2280 (Key M) > used for NVMe M.2 SSD

1x microSD
Power Input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
Protection class
IP67
IP67
IP67
IP67
Dimensions
w250 x h105 x d170mm
w250 x h105 x d170mm
w250 x h105 x d170mm
w250 x h105 x d170mm
Weight
3.6 kg
3.65 kg
3.6 kg
3.65 kg
Op. Temp. range
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
