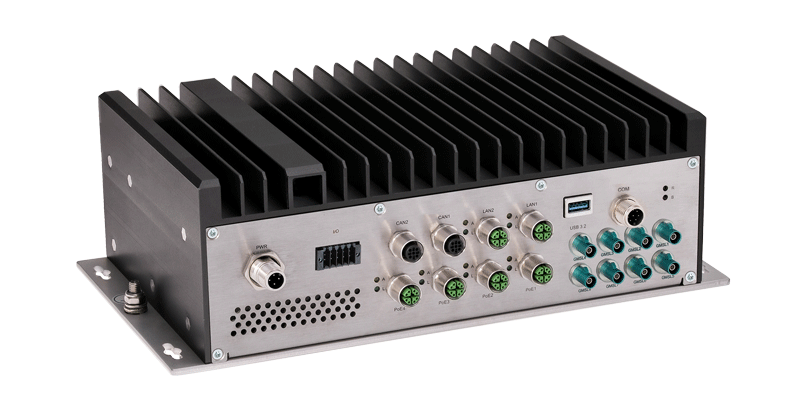

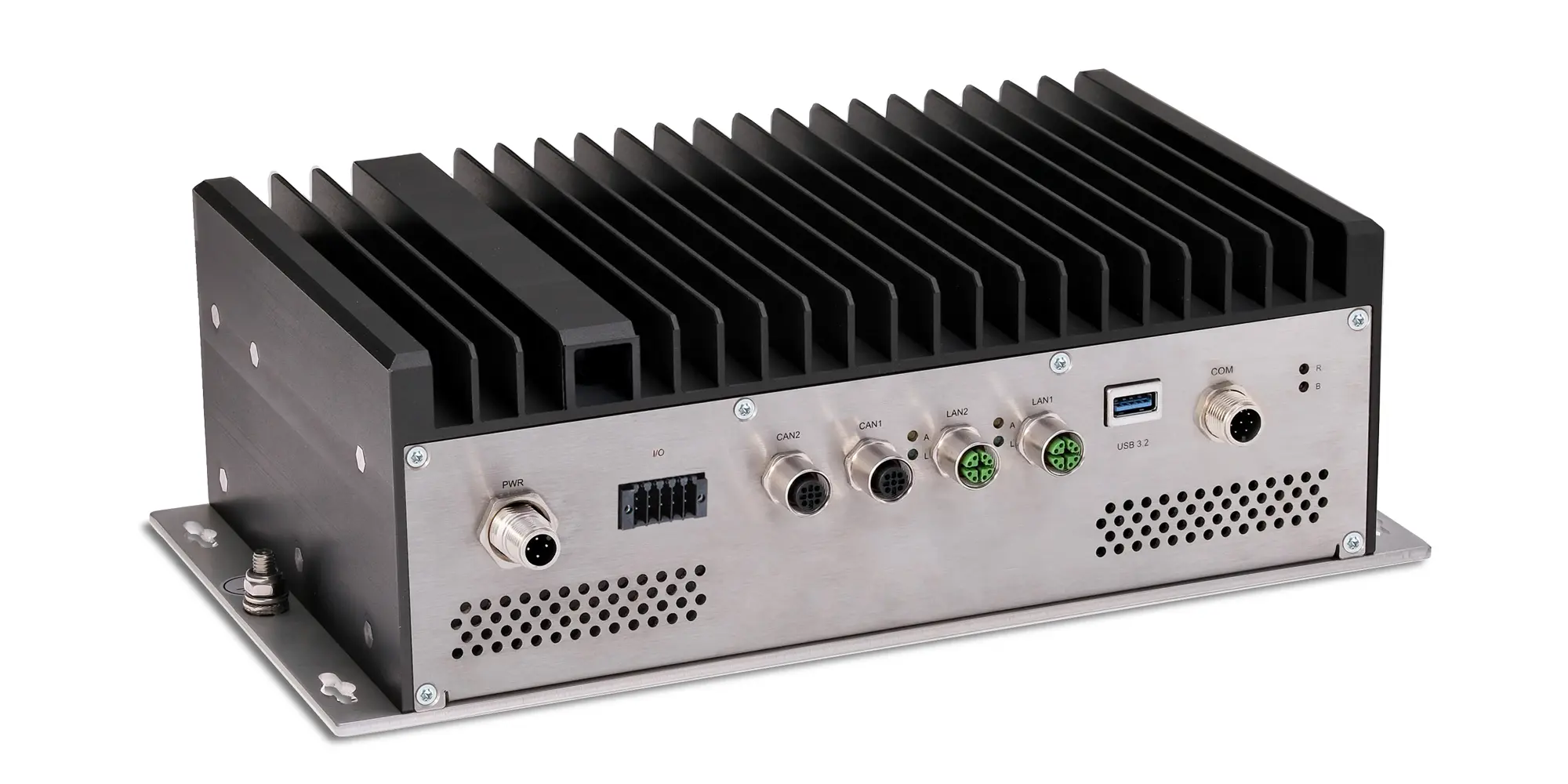

The AI Railway Computer RML A4AGX is based on the NVIDIA® Jetson AGX Orin™ System-on-Module (SoM). The latest member of NVIDIA's Jetson family features up to 275 TOPS of AI processing power and starts at 32 GB of RAM. The system-on-module (SoM) consumes between 15 and 75 watts of power. This unique combination of form factor, performance, power efficiency and ruggedness opens the door to a new generation of rolling-stock applications.
The EN50155 & EN45545 HL3 certified rolling-stock/transportation computer is particularly suited for computer vision applications such as object or hazard detection, environmental perception, route monitoring, intelligent video analysis, or control of autonomous systems. The AI-Railway Computer RML A4AGX has an integrated galvanically isolated power supply with a DC input voltage range of 16.8V – 137.5V. This allows the railway computer to be directly connected to 24V, 36V and 110V systems. With optional radio connectivity (5G/4G, Wi-Fi) the computer is suitable as a gateway or for access to your cloud.
DOCUMENTS COMING SOON
Datasheet
Product manual
CE declaration of conformity
Quick Quide - Accessing GNSS (GPS) data
COMING SOON
COMING SOON
Mechanical drawing (PDF)
3D file (STP)
