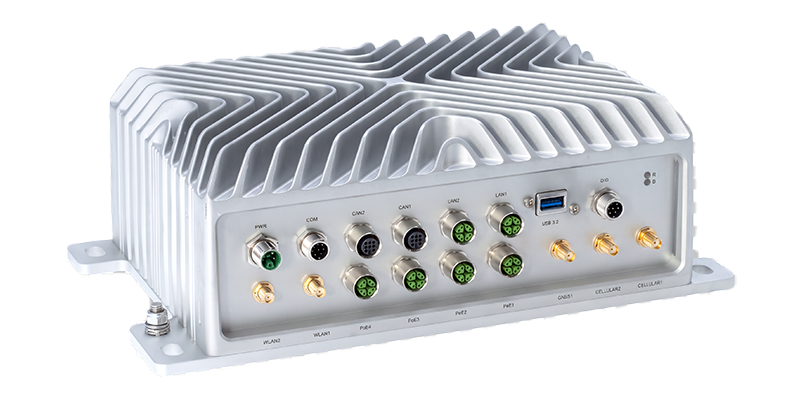

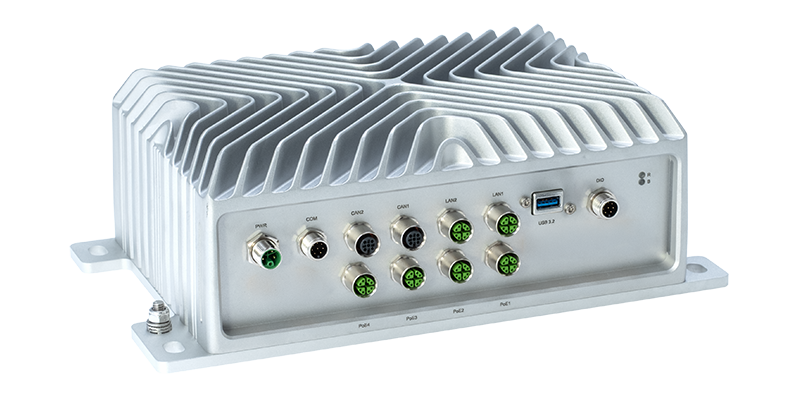

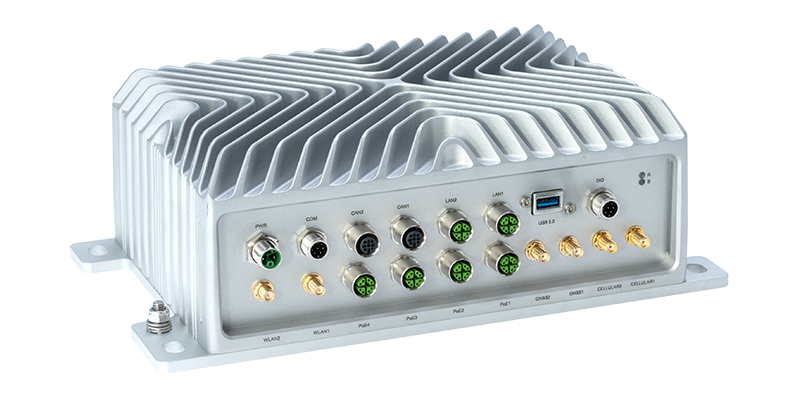

The new AI Rugged Computer RML A4NX (PoE) stands out with a wide range of I/O interfaces, making it ideal for Industry 4.0, Edge Computing, and IoT applications. Its key feature is the four PoE (Power over Ethernet) ports, allowing direct connection and simultaneous power supply for sensors. This enables the real-time collection and processing of sensor data, making it perfect for smart manufacturing, automation, and industrial AI solutions.

With its versatile interfaces and the powerful NVIDIA® Jetson™ Orin NX platform, the RML A4NX (PoE) is designed for sensor fusion and AI inferencing. It is widely used in autonomous and industrial vehicles, including AMRs (Autonomous Mobile Robots), cars, trucks, buses, special-purpose vehicles, as well as construction and agricultural machinery.

Built for extreme environments, the IP67-rated rugged computer features a shock- and vibration-resistant design. Syslogic integrates the NVIDIA Jetson module with a custom-engineered carrier board, specifically developed to withstand harsh conditions. It now also supports the newly announced Super Mode. To protect the electronics from moisture, water, and dust, the Rugged PC is enclosed in an ultra-durable housing and equipped with screwable M12 connectors. Additionally, a GORE® ventilation element ensures pressure equalization, enhancing the device’s long-term reliability.

Customize product

All products

Downloads

Documents

Datasheet

Product manual (Coming soon)

CE declaration of conformity (Coming soon)

Compare Products

RPC/RMLA4NX16-A212S-02
RPC/RMLA4NX16-B212S-02
RPC/RMLA4NX16-A202S-02
RPC/RMLA4NX16-B202S-02
Jetson Module
Orin NX
Orin NX
Orin NX
Orin NX
Memory / RAM
16GB RAM
16GB RAM
16GB RAM
16GB RAM
Storage
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
Display out
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
1x Displayport 1.4a (behind rear cover)
USB
1x USB 3.2 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 3.0 Type-C (for flashing only)
1x USB 3.2 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 3.0 Type-C (for flashing only)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 2.0 microAB (for flashing only)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind rear cover)
1x USB 2.0 microAB (for flashing only)
Networking
1x 1 GbE
1x 2.5GbE
4x 1GbE PoE
1x 1 GbE
1x 2.5GbE
4x 1GbE PoE
1x 1 GbE
1x 2.5GbE
4x 1GbE PoE
1x 1 GbE
1x 2.5GbE
4x 1GbE PoE
Super Mode
Yes
Yes
No
No
CAN
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
Serial
1x RS232
1x RS232
1x RS232
1x RS232
Digital I/O
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
4 inputs / 2 outputs (configurable)
Wireless
-
5G RedCap w/GNSS
Wi-Fi 6E & Bluetooth
-
4G LTE w/GNSS
Wi-Fi 6E & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for NVMe SSD

1x microSD
1x M.2 3042 (Key B) > used for 5G
1x M.2 2230 (Key E)  > used for Wi-Fi
1x M.2 2280 (Key M) > used for NVMe SSD

1x microSD
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for NVMe SSD
1x mPCIe
1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E)  > used for Wi-Fi
1x M.2 2280 (Key M) > used for NVMe SSD
1x mPCIe
1x microSD
Power Input
9-60V DC Power input
 (M12 L-coded)
9-60V DC Power input
(M12 L-coded)
9-45V DC Power input (M12 a-coded)
9-45V DC Power input (M12 a-coded)
Protection class
IP67, IP69
IP67, IP69
IP67, IP69
IP67, IP69
Dimensions
w250 x h101 x d170mm
w250 x h101 x d170mm
w250 x h100 x d170mm
w250 x h100 x d170mm
Weight
3.65 kg
3.75 kg
3.65 kg
3.75 kg
Op. Temp. range
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
